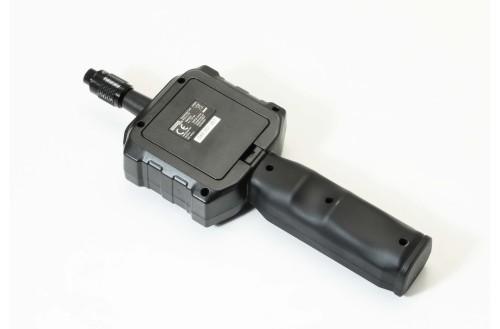

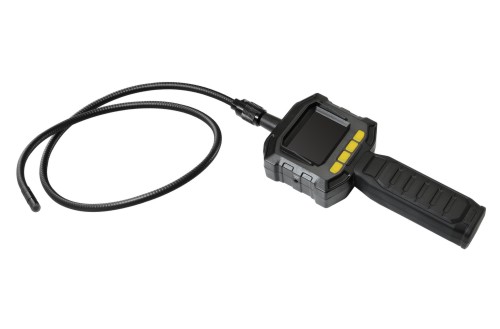

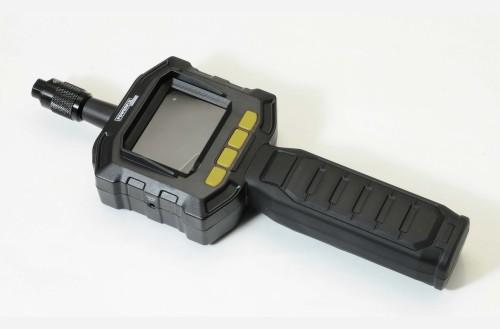

- Product Name：GD9002 WIFI Inspection Tool HD WiFi Inspection Camera with Lens-mounted LED Light
- Configuration
- Speciality
· HD video transmitting through Local WiFi, support iPhone, iPad and Android phone
· Allows for easy surveying of small, hard-to-teach places
· Mini 8mm water-proof camera with 1m (3 ft.) flexible extended tube
· Manufactured and tested to IP67 waterproof standard
· Video recording and photo capture capability
· Increase visibility with 3*zoom capability
· Adjustable brightness on lens-mounted LED light

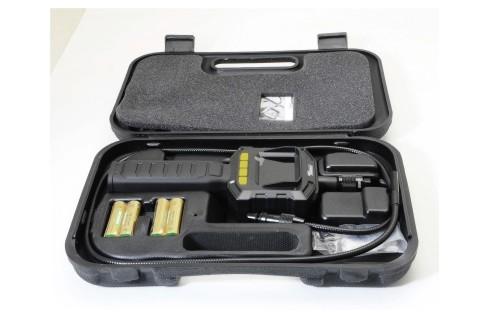

· 3 useful accessories included: Hook,mirror and magnet
· Lightweight, handheld design, flexible and convenient to use
GD9002 Product specification
| Item | Unit | Specification |
| Image Sensor | Inch | 1/4-inch CMOS |
| Effective Pixels | pixels | 1280*720 |
| Video Format | NTSC/PAL | |
| Lens Mount | color, F=2.8 | |
| Horizontal Angle of view | Degree(°) | 48° |
| Minimum 111umination | Lux | 0(LED ON) |
| The hose diameter | mm | Φ9 |
| Hose resistance rating | IP67 | |
| Modulated demodulation mode | 802.11b：DSSS (CCK, DQPSK, DBPSK) 802.11g/n：OFDM (BPSK, QPSK, 16QAM, 64QAM) |
|
| The transmission rate | bps | 1--150Mbps |
| Frequency stability | PPm | ±20 |
| No obstruction to transmission distance | m | ≥10 |
| Picture Format | — | .MJPG |
| Video Format | — | .AVI |
| Picture/Video Resolution | pixels | 1280*720 |
| Frame Rate | Frame/S | 25 |
| The file size | MB/minute | ＜35M |
| Working voltage | V | AA 1.5V x 4 |
| Working current | mA | 600(MAX)＠4.2V |
| Working temperature | ℃ | -10~+50 |
| Storage temperature | ℃ | -20~+60 |
| Working humidity | RH | 20%~85% |
| Store humidity | RH | 20%~90% |
| WiFi handle size | mm | |
| Handle the weight | g | 158 |
