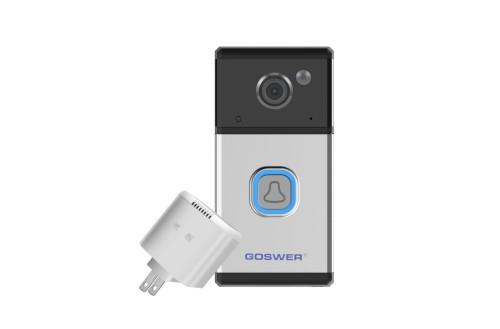

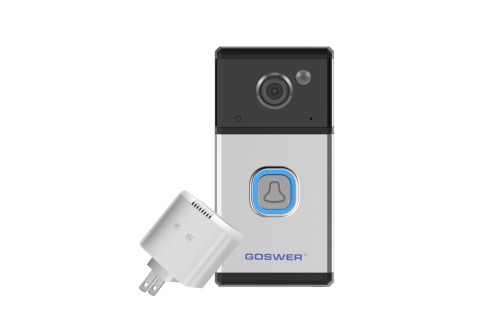

- Product Name：5100ZJ Doorbell Camera Intelligent Security Battery Doorbell Camera IP Camera.
- Configuration
- Speciality
l Low power consumption chipset support up to 6 months continual working time.
l Total wireless. Open range wifi transmission distance reach to 100m.

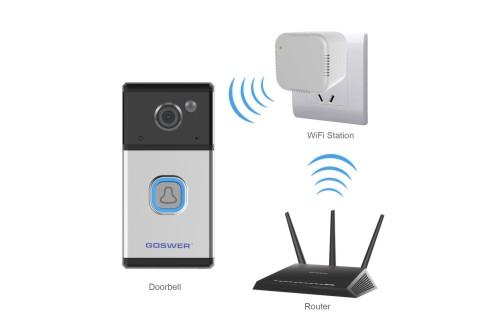

l Included mini indoor repeater. Ensure the stable transmission. Alert by ring.
l Repeater max support 64GB micro SD card.Even the doorbell have by stolen or broken. The recording files will not be lost.
l PIR sensor motion detection.Auto recording and push notification if PIR have been triggered.
l IR cut. Auto switch. 8m night vision distance.
l Outdoor use design. 1P55 level.
l Support iOS and Android remote view and control. 720P real time live video, Recording playback.
T5100ZJ Product specification
| Item | Unit | Specification |
| The operating system | — | RTOS |
| The main chip | — | Hi3518E v200 |
| Image Sensor | inch | OV9732 1/4" CMOS Sensor |
| Wi-fi chip | — | Ti CC3200 |
| Pixel Pitch | μm | 3um |
| View Angle | Degree(°) | 113(horizontal) |
| The resolution of the | pixels | 1280x720(single yard stream) |
| Frame Rate | fps | 25max |
| Video Format | — | H.264 |
| Audio Format | — | G711 |
| Voice intercom | — | Two-way half duplex voice. |
| Microphone input | db | -38 |
| The Speaker output | W | 8Ω 1W |
| WiFi distance | m | 100米(open distance) |
| The wireless network | — | WIFI,802.11 b/g/n |
| Wireless security | — | WPA/WAP2/WPA-PSK/WPA2-PSK |
| Operating system support | — | Android/iOS |
| The video store | — | PIR/ ring video in relay TF |
| The video store | — | The time of year is divided into seconds. |
| The night vision | — | 6M 850nm |
| Mobile detection /PIR alarm | — | Support (open/close) 2M |
| Good friends share |
— | Qr code sharing. |
| The network configuration | — | Sound waves |
| Power voltage | V | 1.5V AA*4 （4-6V） |
| Consumption | mA | 160(night vision 480max) |
| Charge Current | μA | 420μA |
| Operation Temperature | ℃ | 0~40 |
| Storage Temperature | ℃ | ﹣20~+60 |
| Operation Humidity | RH | 15%~85% |
| Storage Humidity) | RH | 10%~90% |
| The fuselage size | mm | 130*27*65 |
